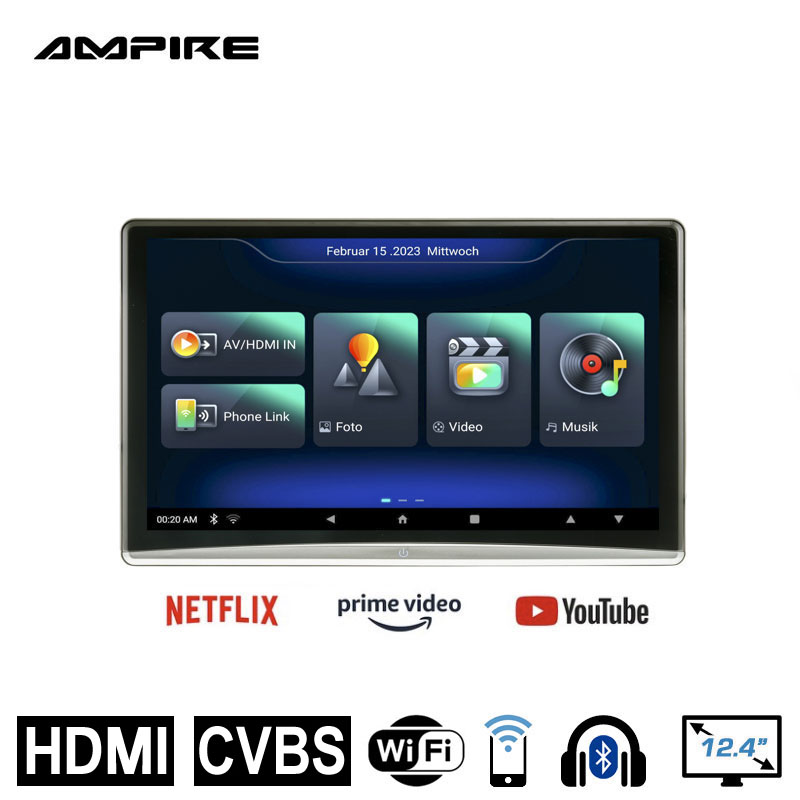

モニター

AMX124
12.4インチ アンドロイドモニター





TECHNICAL DATA

Display
- Digital 31.5cm (12.4'') LED IPS display (New Grade A)
- capacitive G+G multipoint touch screen
- Resolution 1920 (H) x 1200 (V)
- Brightness 350 cd/m²
- Contrast 800:1
- Viewing angle 170° horizontal, 170° vertical
- 4K video decoder
- NTSC/PAL playback automatic
- Display complies with ISO 9241-307, pixel error class II

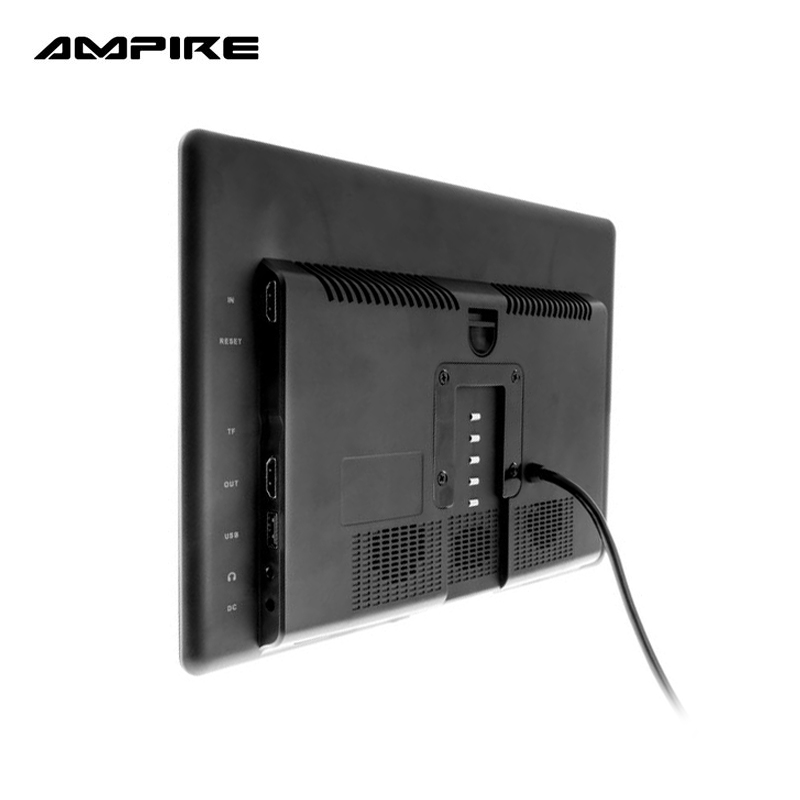

Inputs/Outputs
- Inputs: Video (Cinch), HDMI, USB 2.0 and micro SD card
- Outputs: HDMI, audio output via cinch, 3.5 mm headphone connection
- Two integrated stereo loudspeakers (2x 5 watts)
- With the integrated FM transmitter, you can play back the sound as an FM radio station via the car radio. FM frequencies can be set from 88 to 108MHz: We recommend using the FM transmitter to transmit sound only as a stopgap measure, as the sound quality from FM is not high quality.
- Wi-Fi IEEE 802.11 a/b/g/n, 2.4GHz+5.0GHz

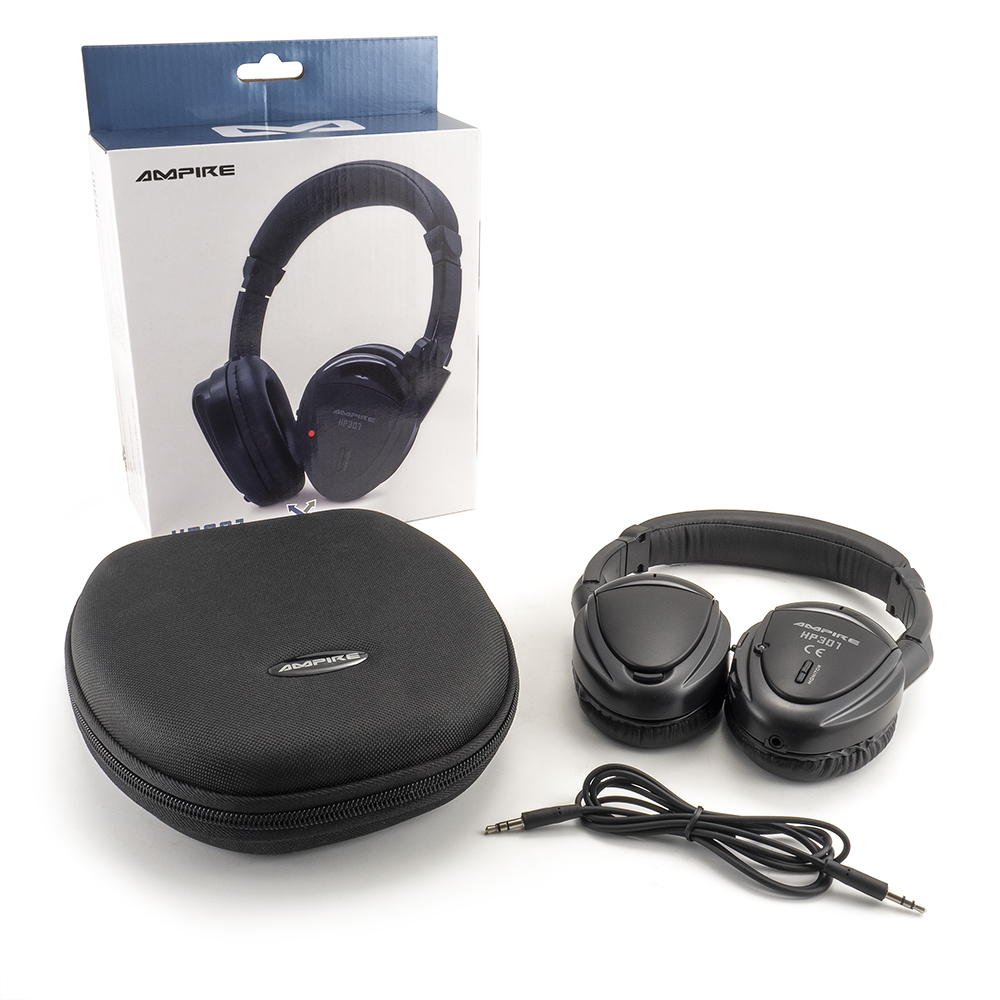

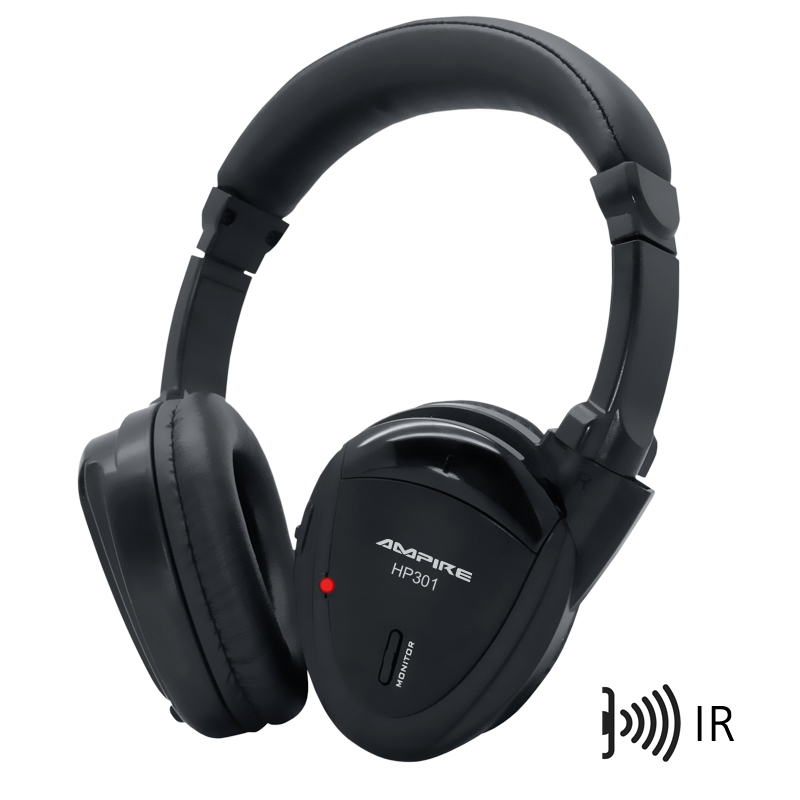

- Built-in Bluetooth 4.0 A2DP transmitter for an optional Bluetooth headset (maximum one receiver), or for audio transmission to your car radio*.
*Only if supported by the car radio. Please follow the manufacturer's instructions.

General

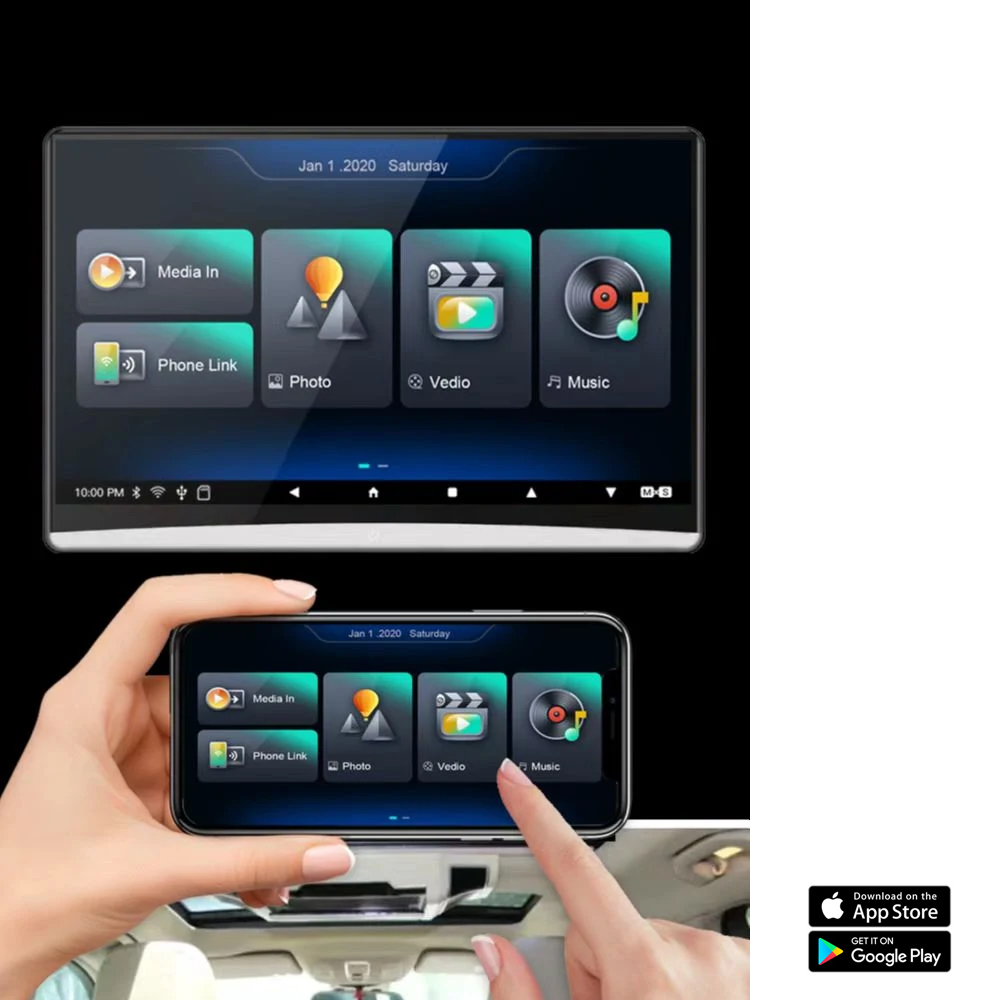

- Controlling the monitor via smartphone using the "MyCar Link" app
- Android 10.0
- 64bit Deca-Core processor with up to 2.0GHz
- 3GB RAM / 16GB flash memory
- microSD card reader (max. 256GB)
- Mood lighting with 7 colours
- Supported video formats: AVI/MP4/VOB/RM/RMVB/DAT/MPEG1/MPEG2/MPEG4/Real Video/FLV/H.263/H.264/H.265/VC-1/VP6/VP8/MVC ...(4K)
- Supported audio formats: MP3/WMA/PCM/CD
- Supported photo formats: JPG/JEPG/BMP
- OTA update
- Dimensions monitor 292x197x27mm
- Weight monitor without bracket 1100g
- Weight universal mount 258g
- Weight special mount 270g
- Operating voltage 12VDC (min. 10VDC, max. 24 VDC)
- Operating temperature -10° - +70°C
- Power consumption (operation) 1.1 to 1.66A
- Power consumption (standby, ignition on) 0.03A
- Power consumption (ignition off) 0.00A

Scope of delivery
- 1x 12.4" monitor

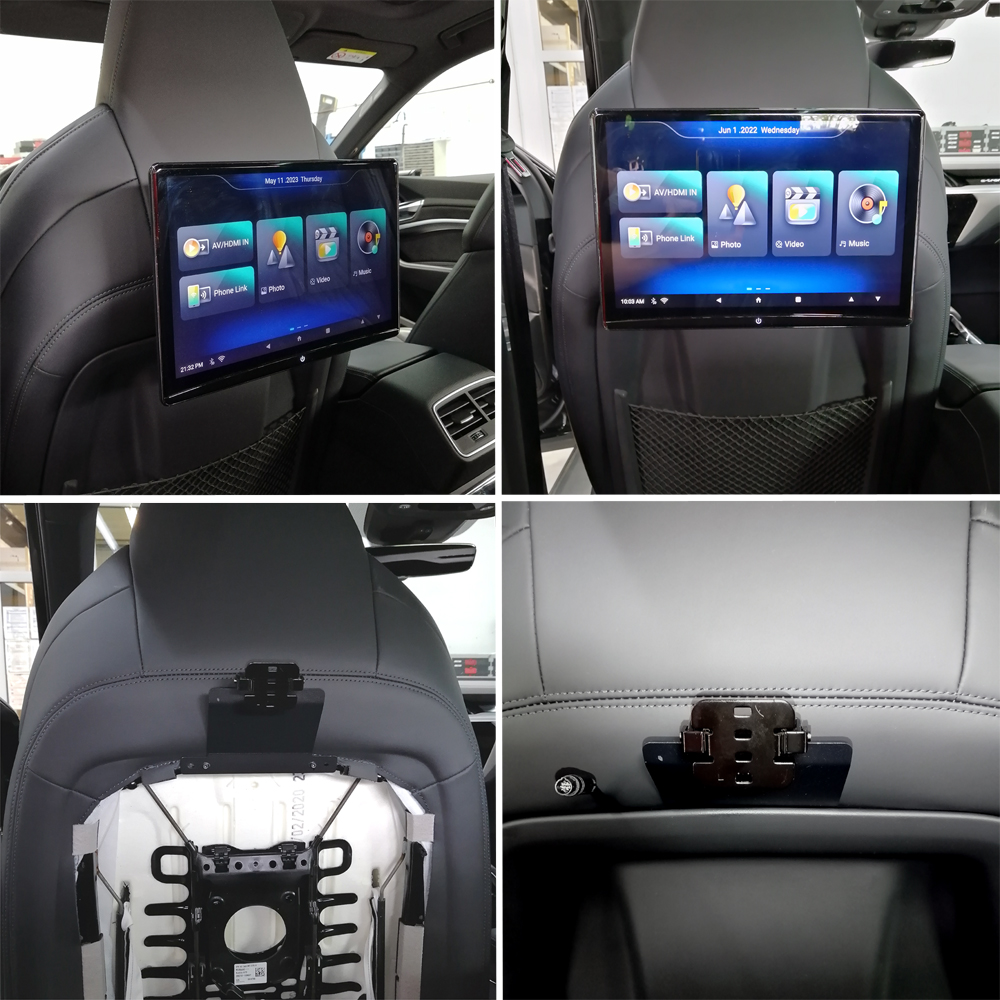

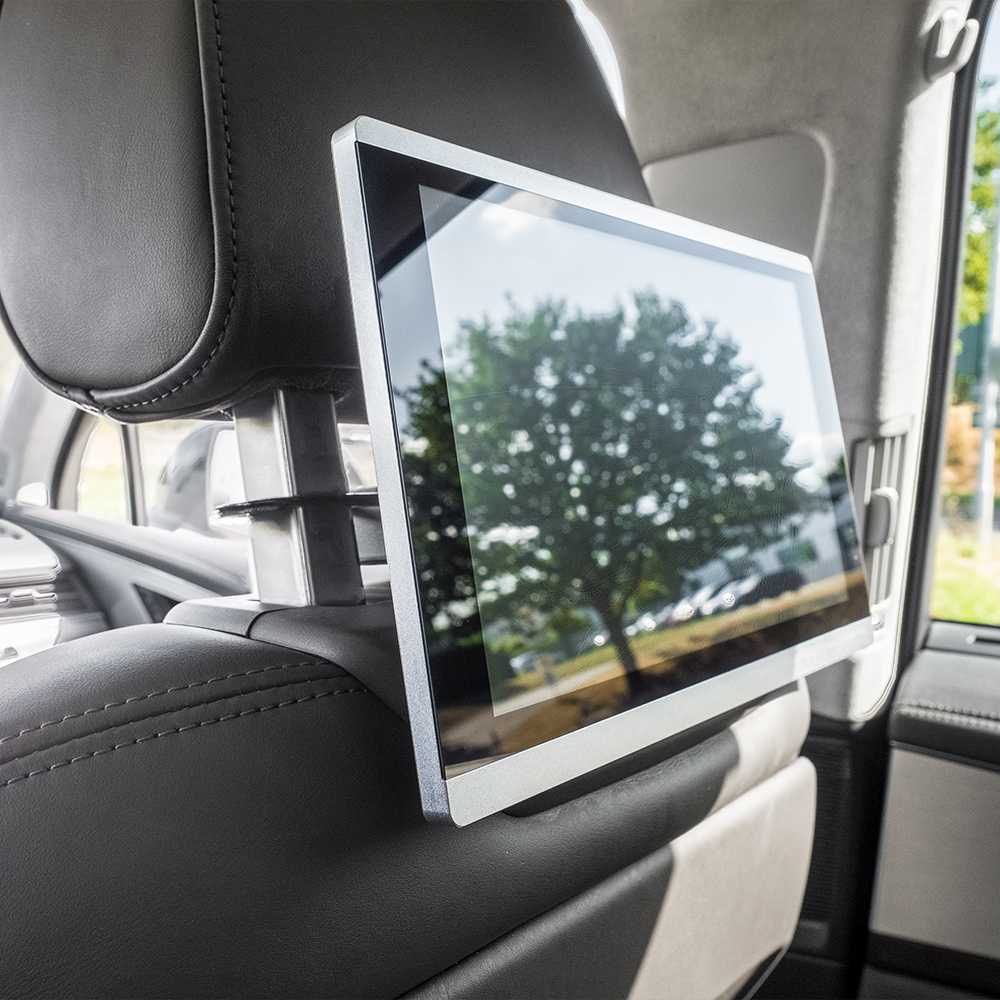

- 1x sturdy metal bracket for the headrest
- 1x special metal bracket for vehicles without headrest linkage
- 1x main connection cable, 300cm
- 1x replacement trim in silver
- 1x instruction manual

価格:オープン
